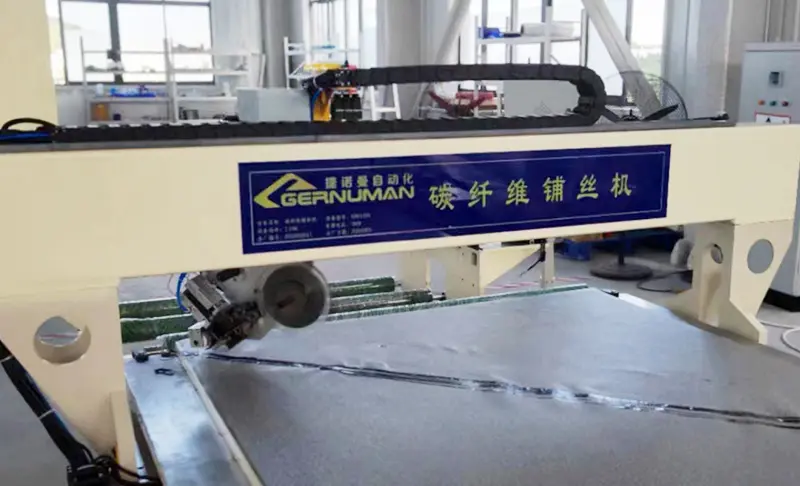

The carbon fiber winding lay-up machine is mainly used for the winding and forming of heavy missiles, masts, and tubular components. It features dual-drive servo spindle, automatic adjustment of the yarn frame, single-branch control of tension servo, and servo re-winding mechanism, etc.
Specification range of carbon fiber winding lay-up machine: Maximum diameter: 4000mm; Maximum length: 15000mm
Technical parameters and specifications of carbon fiber winding filament laying machine equipment:
|
1、Structural form： |
Horizontal type； |
|
2、Maximum clamping length, rotation diameter： |
Length > 10m; Diameter > 3m； |
|
3、Effective driving range of the vehicle |
＞11m; |
|
4、Maximum clamping and rotating weight： |
10T (with the eccentric torque of the product being 200Nm)； |
|
5、Gel tank capacity and form： |
20L Stainless Steel Independent Plastic Container； |
|
6、Rubber tank impregnation structure and heating method： |
The upper part is in a dip-coating form and is heated by a water bath； |
|
7、Curing tank temperature： |
Room temperature to 80℃, temperature uniformity ±2℃； |
|
8、Control form： |
Four-axis Siemens servo control system； |
|
9、Wrapping angle： |
0--90°； |
|
10、Winding and repetitive positioning accuracy： |
≤0.2mm； |
|
11、The maximum rotational speed of the main shaft： |
0-30r/min；Determine based on the speed of embroidery |
