HOME >> PRODUCTS >>Product display >> Floor horizontal winding machine
Details

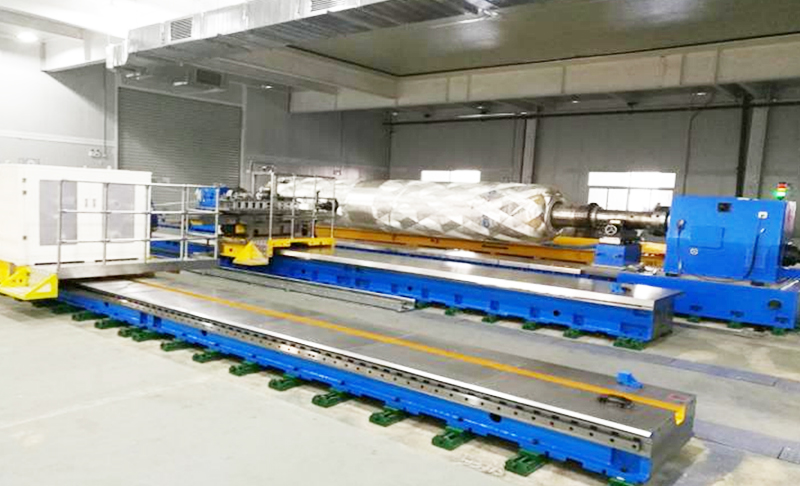

Floor horizontal winding machine



Equipment technical parameters and specifications

1Structural form

horizontal

2Maximum clamping length, turning diameter

Length10mdiameter3m

3Effective travel of car

11m;

4The maximum clamping rotation weight

10TIncluding product eccentric torque200Nm

5Groove capacity, form

20LStainless steel independent tank

6Glue groove dipping structure and heating form

Coated form, water bath heating

7Bath temperature

Room temperature ~80, temperature uniformity 2棻

8Control form

Four-axis Siemens servo control system

9Winding Angle

0--90㣻

10Winding repeat positioning accuracy

0.2mm

11Maximum spindle speed

0-30r/minTo determine by the speed of drawing
